Globe valves

Absperrventile gehören zu den Absperrarmaturen. Die Absperrventile können per Hand oder mit einem Antrieb betätigt werden. Bei einigen Absperrventilen können elektrische oder pneumatische Antriebe montiert werden.



Je nach Anforderung gibt es Absperrventile auch mit verschiedenen Zulassungen:

-DVGW Trinkwasser

- DVGW Gas

- TA Luft

Maintenance free diaphragm valve in straight through form, PN 16, body: JL-1040,

soft seated, with hand wheel, position indicator with integrated stem protection, body lining: -

Female thread, PN 16, handwheel, operating temperature: max. +205°C,

body: stainless steel 1.4408, trim: stainless steel 1.4401, gland packing: PTFE

Maintenance free diaphragm valve in straight through form, PN 16, body: red-bronze,

soft seated, with hand wheel, position indicator with integrated stem protection, body lining: -, diaphragm: EPDM,

 ...

Female thread, PN 16, y-pattern, handwheel, operating temperature: -20°C to +90°C,

body: brass, trim: brass, seat: NBR

Flange version, maintenance free diaphragm valve in straight through form, PN 10, body: JL-1040,

soft seated, with handwheel, position indicator with integrated stem protection

Sisto-10 EPDM: body l ...

Female thread, PN 16, handwheel, operating temperature: -20°C to +90°C,

body: brass, trim: brass, seat: NBR

Flange version, maintenance free diaphragm valve in straight through form, PN 10, body: JL-1040,

soft seated, with handwheel, position indicator with integrated stem protection

Sisto-KB EPDM body li ...

Straight through, Female thread, handwheel

Fig. 110-Ms: body: brass, PN 100, operating temperature: max. 100°C

Fig. 110-St: body: steel, PN 200, operating temperature: max. 350°C

Fig. 110-VA: body: ...

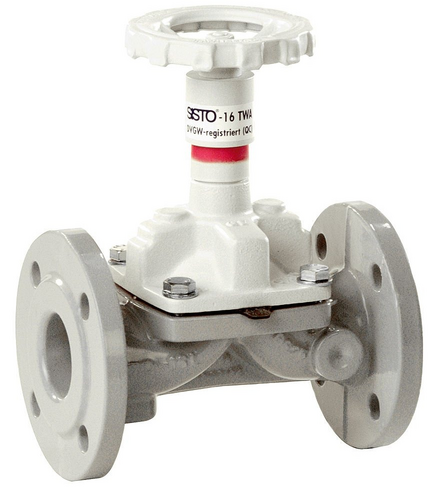

Flange version, maintenance free diaphragm valve in straight through form, PN 16, body: JL-1040 (GG-25),

soft seated, with handwheel, position indicator with integrated, stem protection

Sisto-16 TWA ...

Globe valve in straight through form, with gland seal, face to face: F1, metal seated, trim: stainless steel,

Typ PA-600.215: body: GG-25, PN 16, max. 200°C

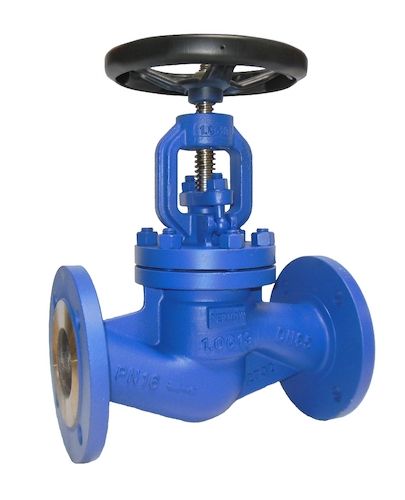

Globe valve in straight through form, with gland seal, face to face: F1, metal seated, trim: stainless steel

Type PA-600.235: body: 1.0619, PN 16, max. 400°C

Type PA-600.435: body: 1.0619, PN 40, ...

Globe valve in straight through form, with gland seal, face to face: F1, metal seated, trim: stainless steel

Type PA-600.266: body: 1.4408, PN 16, max. 400°C

Type PA-600.466: body: 1.4408, PN 40, ...

Globe valve in straight through form, with gland seal, face to face: F1, metal seated, trim: stainless steel,

body: 1.0460, PN 40, max. 425°C, butt weld ends

 flanged ends

Globe valve in straight through form, with gland seal, face to face: F1, metal seated, trim: stainless steel,

body: 1.0460, PN 40, max. 425°C, flanged ends

Globe valve in straight through form, with gland seal, metal seated, trim: stainless steel, seat stellited,

body: 1.0460, PN 160, max. 425°C, butt weld endsC, butt weld ends

Globe valve in straight through form, with gland seal, metal seated, trim: stainless steel, seat stellited,

body: 1.7357, PN 160, max. 575°C, butt weld ends

Entries 1 to 16 of 25
  • 1
  • 2

Technische Information

Ausführung

Ventile gibt es in der Ausführungen. Wir bieten folgende Arten an:

-Muffenventil

-Nadelventil

-Geradesitzventil

-Schrägsitzventil

-Eckventil

-Membranventil

Anschlussarten

Bei den Absperrventilen kann man zwischen 3 Verbindungsoptionen wählen. Es gibt zur Auswahl: Anschweißende, Gewindeende oder Flanschausführung.

Gehäuse Material

Bei dem Gehäuse gibt es folgende Materialien zur Auswahl:

-Grauguss

-Sphäroguss

-Stahlguss

-Schmiedestahl

-Edelstahl

-Messing

Dichtung

Folgende Dichtungen stehen zur Auswahl:

- PTFE

- NBR

- metallisch

- EPDM

Betätigung

Alle Absperrventile können von Hand oder automatisiert betätigt werden.  Bei den Absperrventilen gibt es veschiedenste Antriebsmöglichkeiten. Für die Pneumatikantriebe muss zwischen einfach- oder doppeltwirkend entschieden werden. Bei den elektrischen Antrieben gibt es die Auswahl zwischen 24 V, 230 V und 400 V.

Nennweiten

Unsere Absperrventile bieten wir von der Größe DN 15 bis DN 500 und 1/4" bis 3" an.

Zeugnisse und Zulassung

Für fast alle Absperrklappen sind Prüfzeugnisse 2.2 und 3.1 verfügbar. Aber auch Zeugnisse und Zulassungen sind für besondere Anforderungen möglich:

-DVGW Gas

-DVGW Trinkwasser

-TA Luft
