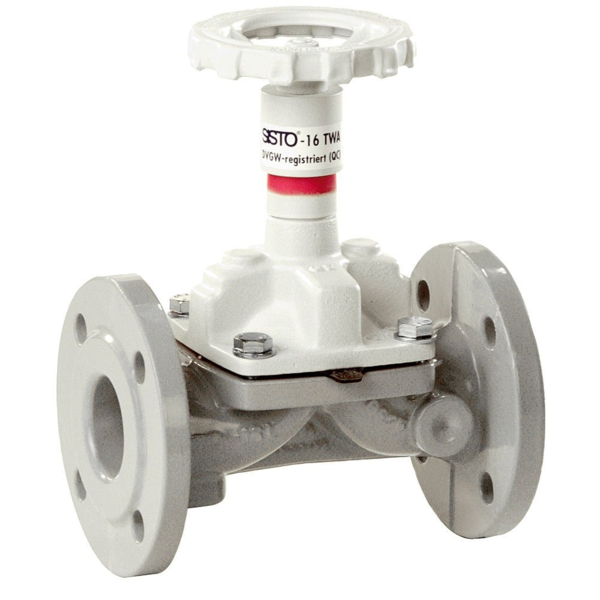

Diaphragm valve, type KSB SISTO-16

Flange version, maintenance free diaphragm valve in straight through form, PN 16, body: JL-1040 (GG-25),

soft seated, with handwheel, position indicator with integrated, stem protection

Sisto-16 TWA: body coating: Rilsan, diaphragm: EPDM, DVGW-proved, for drinking water up to 90°C

Sisto-16 HWA: body lining: -, diaphragm: EPDM, for hot water up to 130°C

Sisto-16 DLU: body lining: -, diaphragm: NBR, for media up to 90°C

Sisto-16 Var.A: body lining: NR-H, diaphragm: IIR, for media up to 100°C

Sisto-16 Var.B: body coating: ECTFE (Halar), diaphragm: TFM, or media up to 150°C
