Series 232
Gearcase: aluminium, quadrant: GGG-40, protection: IP 65, with handwheel
Type 8791
Digital electro-pneumatic positioner, for double and spring return actuators,
protection class: IP 65, supply voltage: 24V DC, ambient temperature: 0°C … +60°C,
input signals: 4 – 20 mA or 0 -10V, also with ATEX II 3 GD
Type i-box 10
2 mechanical limit switsches in i-box-housing, indication: open/close, protection class: IP 67,
switch type Cherry D44X, breaking capacity: max. 10A (250V AC) / max.2,5A (24V DC),
for direct mounting on our pneumatic actuators, without brackets, from 140DA/SR with brackets
Type KN-05-310-HN: 3/2-way Solenoid valve for pneumatic actuators, connection G 1/4", adapter after Namur
(for direct mounting on our actuators!), body: aluminium, seal: NBR, protection class: IP65 and Ex-protect,
with manual override, temperature: -10° … 70°C, version for single acting actuators
Square reducer of steel, outside double square, inside square

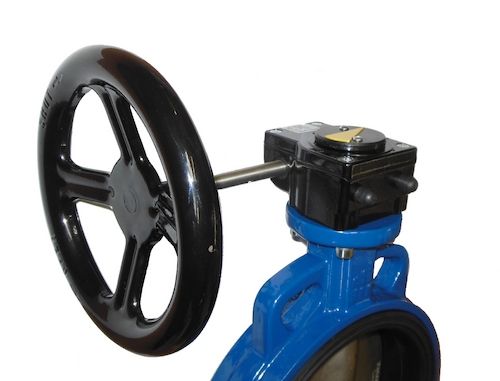

Series 232
Gearcase: aluminium, quadrant: GGG-40, protection: IP 65, with handwheel
Namur-connection: 80x30mm,sStem height: 20mm

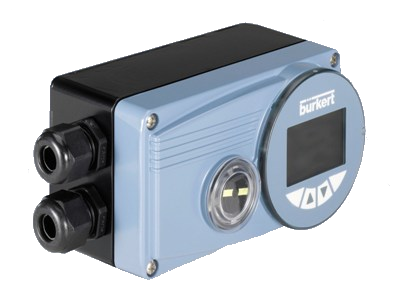

Type 8792
Digital electro-pneumatic positioner, for double and spring return actuators,
protection class: IP 65, supply voltage: 24V DC, ambient temperature: 0°C … +60°C,
input signals: 4 – 20 mA or 0 -10V, also with ATEX II 3 GD

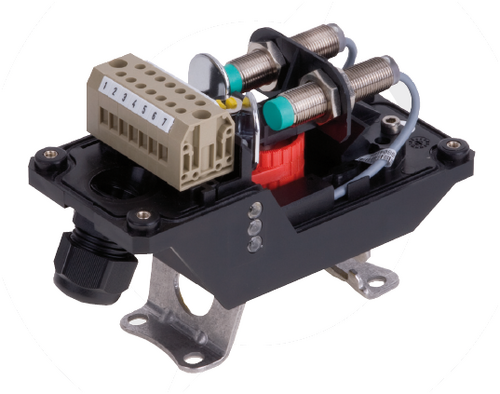

Type i-box 20
2 proximity sensor in i-box-housing, indication: open/close, protection class: IP 67,
sensor type Pepperl+Fuchs NBB2-V3-E2, 3-wire PNP, breaking capacity, 10-30V DC, 100mA,
for direct mounting on our pneumatic actuators, without brackets, from 140DA/SR with brackets

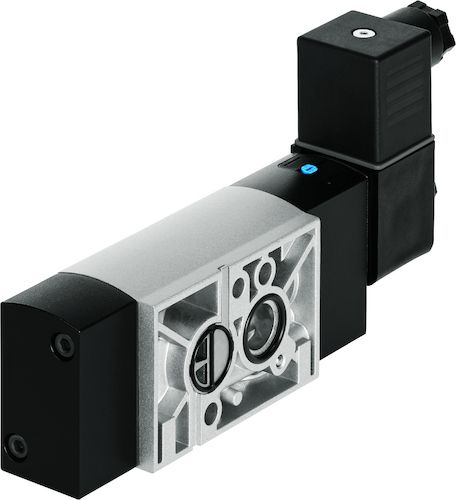

Type KN-05-510-HN: 5/2-way Solenoid valve for pneumatic actuators, connection G 1/4", adapter after Namur
(for direct mounting on our actuators!), body: aluminium, seal: NBR, protection class: IP65 and Ex-protect,
with manual override, temperature: -10° … 70°C, version for double acting actuators

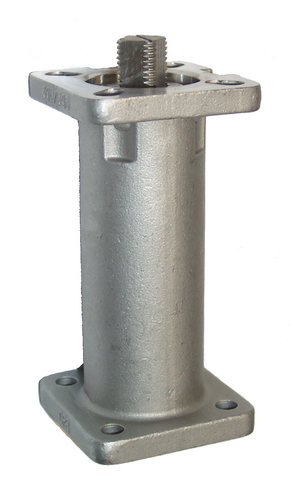

Stem extension of stainless steel, with gland seal of PTFE, length:100 mm, from DN 125: 120mm
Series AB-SS
Gearcase: AISI 316, quadrant: GGG-40, protection: IP 68, with handwheel
Type 8793
Digital electro-pneumatic process controller, for double and spring return actuators,
protection class: IP 65, supply voltage: 24V DC, ambient temperature: 0°C … +60°C,
input signals: 4 – 20 mA or 0 -10V, also with ATEX II 3 GD
Type i-box 30
2 proximity sensors in i-box-housing, indication: open/close, protection class: IP 67,
sensor type IFM NS5002, 2-wire, voltage: 8,2V DC, base/cover: vestamid black, cover: polycarbonate,
ATEX II 2G Ex ia IIB T6 Gb / II 2D Ex ia IIIC T6 Db,
for direct mounting on our pneumatic actuators, without brackets, from 140DA/SR with brackets
Type KM-10-510-HN: 5/2-way Solenoid valve for pneumatic actuators, applicable for our knife gate valves,
connection G 1/4", NW 9, body: brass, seal: NBR, protection class: IP65, with manual override,
temperature: -10°C … 70°C, working pressure: 2,5 – 10 bar, voltage: 230V/50Hz or 24V DC,
version for double acting actuators
Sound absorber of sintered bronze, with slit, 0-8 bar
Series ILG-D
With handwheel declutchable, gearcase: GG-25, quadrant: GGG-40, protection: IP 65, with handwheel
