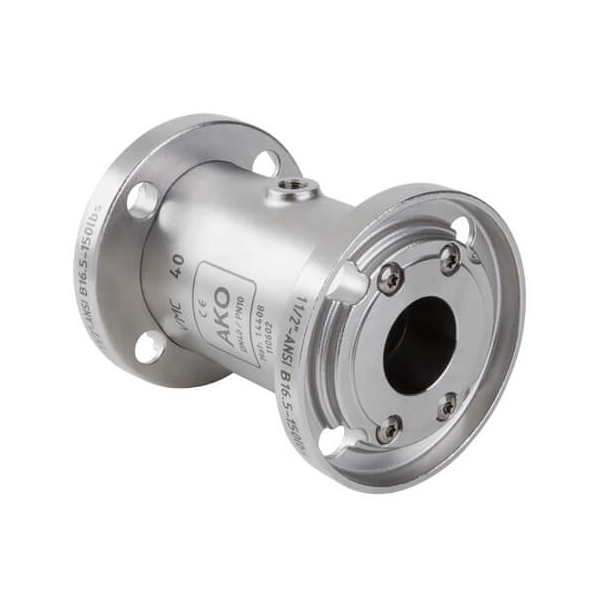

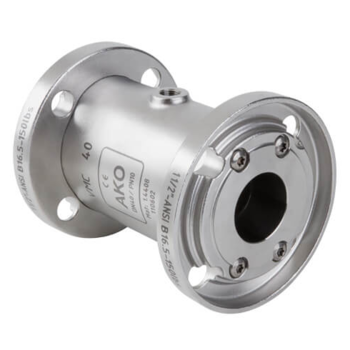

Pneumatic pinch valve with flanged ends, type VMC-F

Pneumatic pinch valve, control air connection: DN 25: G ⅛“, DN 32-150: G ¼”, PN 10,
operating/medium pressure: max.6 bar, control/closing pressure: 5-8 bar, differential pressure: 2-3.5 bar,
body: aluminium or stainless steel, flanges: stainless steel,
control with 3/2-way solenoid valve

Sleeves:
NR food pale 02X, NR anti-abrasive 03X
EPDM food black 04HTEC
Neoprene 01X, NR high temperature 03H, EPDM food pale 04LW, NBR 07X, CSM 08X,
IIR 09X, NBR food black 07LS, NBR food pale 07LW
Viton 05, Silicone 06
