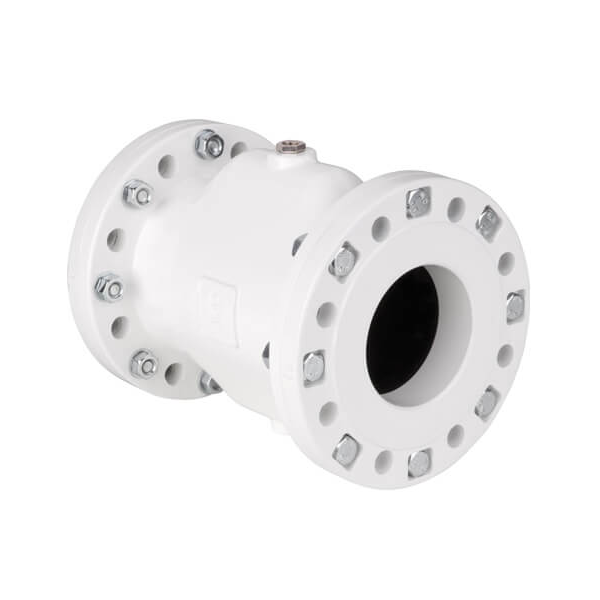

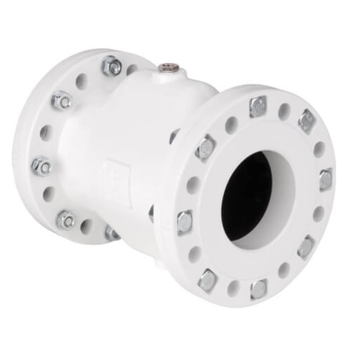

Pneumatic pinch valve, type VF

Pneumatic pinch valve, PN 10,
control air connection: DN 40-150: G ¼", DN 200: G ⅜“, DN 250-300: G ½",
operating/medium pressure: max. 3-6 bar, control/closing pressure: 5-8 bar,
differential pressure: 2-3.5 bar,
body: aluminium, flanges: aluminium, aluminium with steel bushing, aluminium with stainless steel bushing or flanged sleeve,
control with 3/2-way solenoid valve

Sleeves:
NR food pale 02X, NR anti-abrasive 03X
EPDM food black 04HTEC
Neoprene 01X, NR high temperature 03H, EPDM food pale 04LW, NBR 07X, CSM 08X,
IIR 09X, NBR food black 07LS, NBR food pale 07LW
Viton 05, Silicone 06
