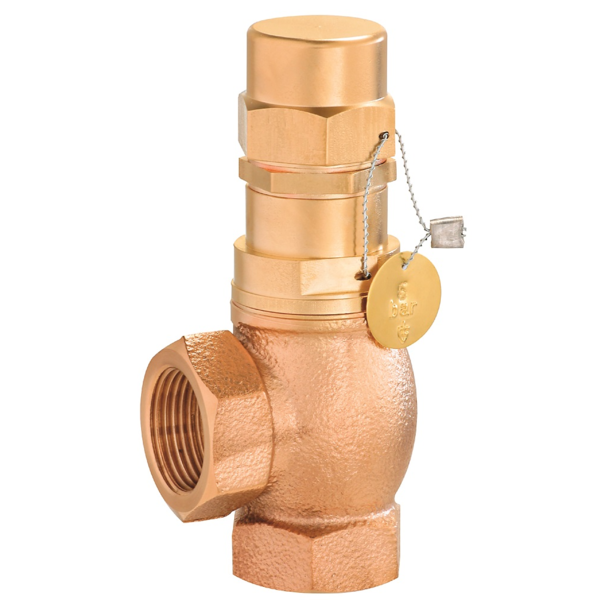

Overflow valve, red brass, type 618

Angular shape, spring-loaded. Completely closed, oiltight and gastight upper part, also suitable

as overflow valve in the event of back pressure. Setting can be sealed.

Type 618 tGFO: Standard with Perbunan gasket. For liquids and gaseous media,

Medium temperature up to 130 °C (optional with PTFE-seal for max. 225°C)

Set pressure: 0,5 - 2,5 bar / 2,0 - 12,0 bar / 12,0 - 20,0 bar
