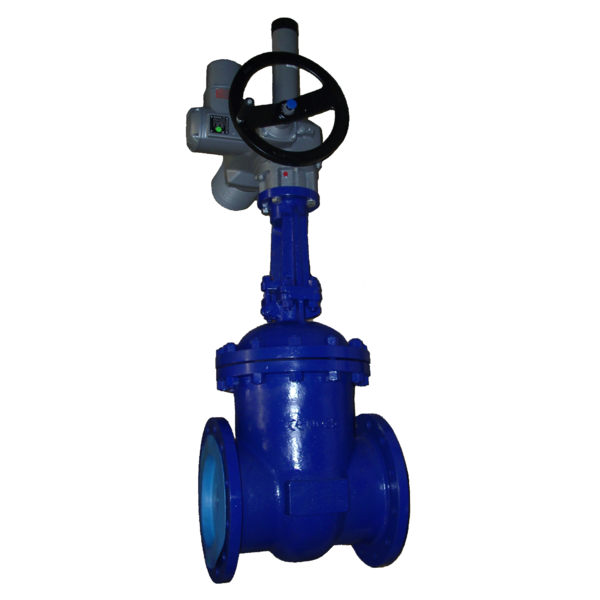

Gate valve, cast steel, with electric actuator, type PA-031E

Round body gate valve according to DIN 3352, flange connection according to DIN, body: 1.0619,

trim: 13% Cr, outside screw and yoke, with handwheel, face to face according to F5, operating temperature: max. 400°C, PN 16,

electric actuator, manufacturer AUMA, type SA, manual override with handwheel, temperature: -40°C up

to +80°C, 2 limit switches, 2 torque limiter, protection class IP 67, ED 30%, voltage: 3~400V/50Hz
