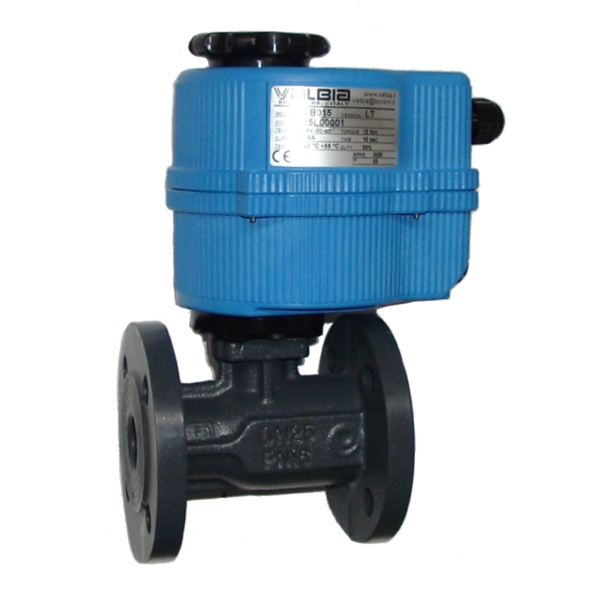

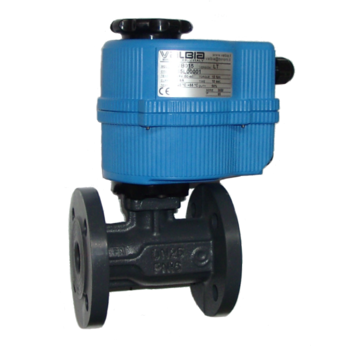

Flanged ball valve, type PA-277E.228.P, with DVGW certificate, with electric actuator

Full bore, PN 16, body: GGG-40, seat: PTFE, ball: brass chrome plated, face to face: F4, temperature: -10°C to +150°C electric actuator, manufacturer Valbia, pivoting angle 90°, manual override with handwheel,  temperature: -20°C up to +55°C, 2 free limit switches, torque limiter, protection class IP 65,  ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC
