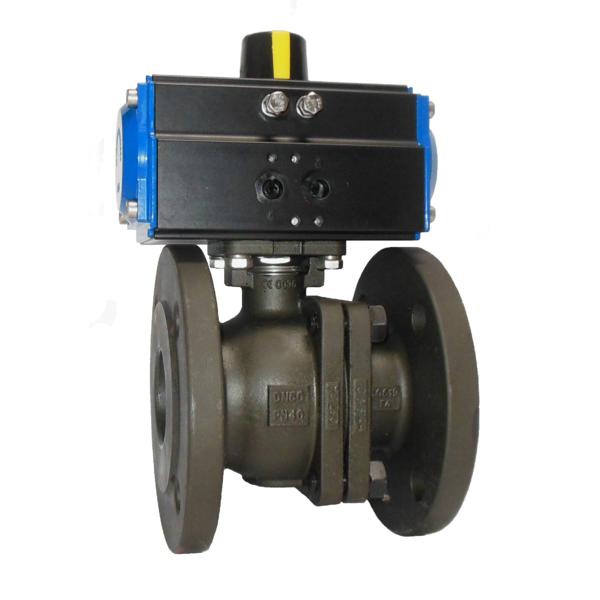

Flanged ball valve (steel) with pneumatic actuator, Type PA-19P.245.P

Full port, 2-pc., face to face according to DIN 3202 F4, from DN 125 F5, flanges according to DIN PN 10/40, from DN 65 PN 10/16, operating temperature: max. 180°C, body: steel 1.0619, ball: 1.4308, seat: TFM-1600, pneumatic actuator, double acting (DA) or spring return (SR), necessary actuating pressure: 6 bar
