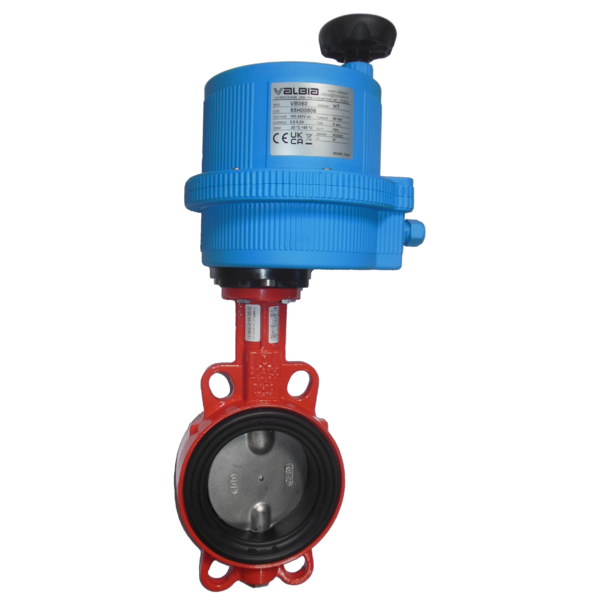

Butterfly valve, with DVGW-Certificate for gas and electric actuator

Type PA-994B
With 4 holes (wafer type), face to face according EN 558-1 (K1),
suitable between flanges PN 6/10/16, topflange according ISO 5211,
body: 0.7040 EKB, disc: stainless steel 1.4408, seat: NBR, max. 80°C,
electric actuator, manufacturer Valbia, pivoting angle 90°, manual override with handwheel,
temperature: -20°C up to +55°C, 2 free limit switches, torque limiter,
protection class IP 65, ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC
